OIL & GAS
Fuel Tanker Series

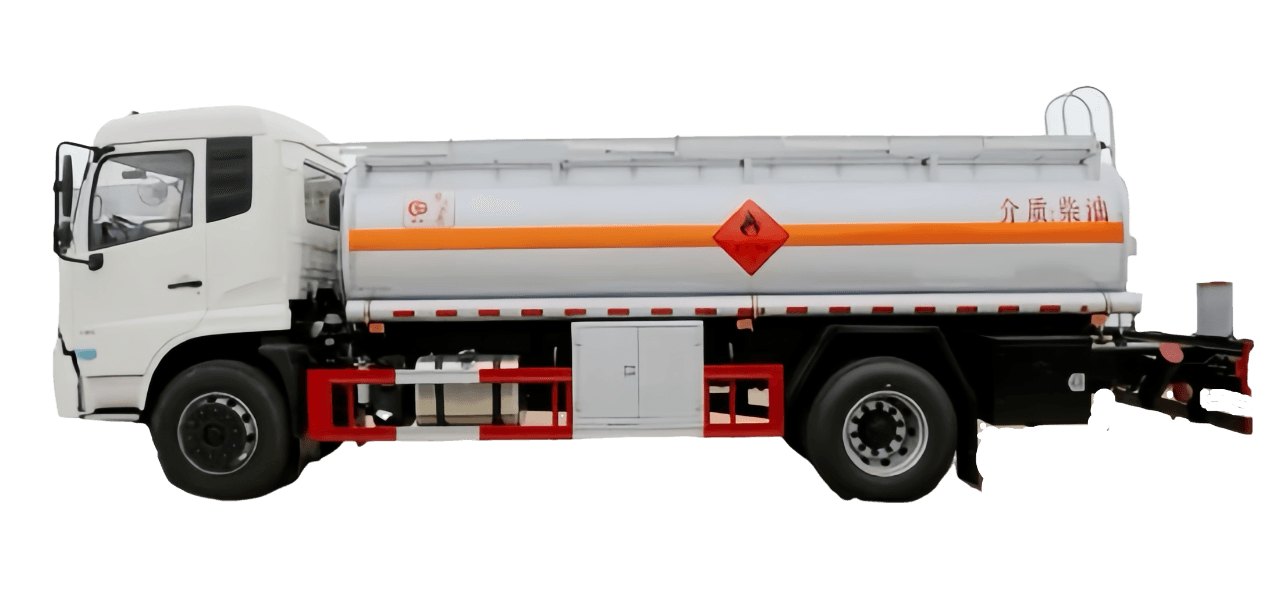

FUEL TANKER TRUCK 4x2
Key Features
- Tank capacity 5,000-10,000L
- Pumping system to load and unload the fuel
- In-truck 15m dispenser
- Overfill protection
- Balance between payload and maneuverability
- Suitable for smaller fuel deliveries or for navigating areas with limited access
- Cost-effective option
FUEL TANKER TRUCK 4x2
Key Features
- Tank capacity 8,000-15,000L
- Pumping system to load and unload the fuel
- In-truck 15m dispenser
- Overfill protection
- Balance between payload and maneuverability
- Suitable for smaller fuel deliveries or for navigating areas with limited access
- Cost-effective option

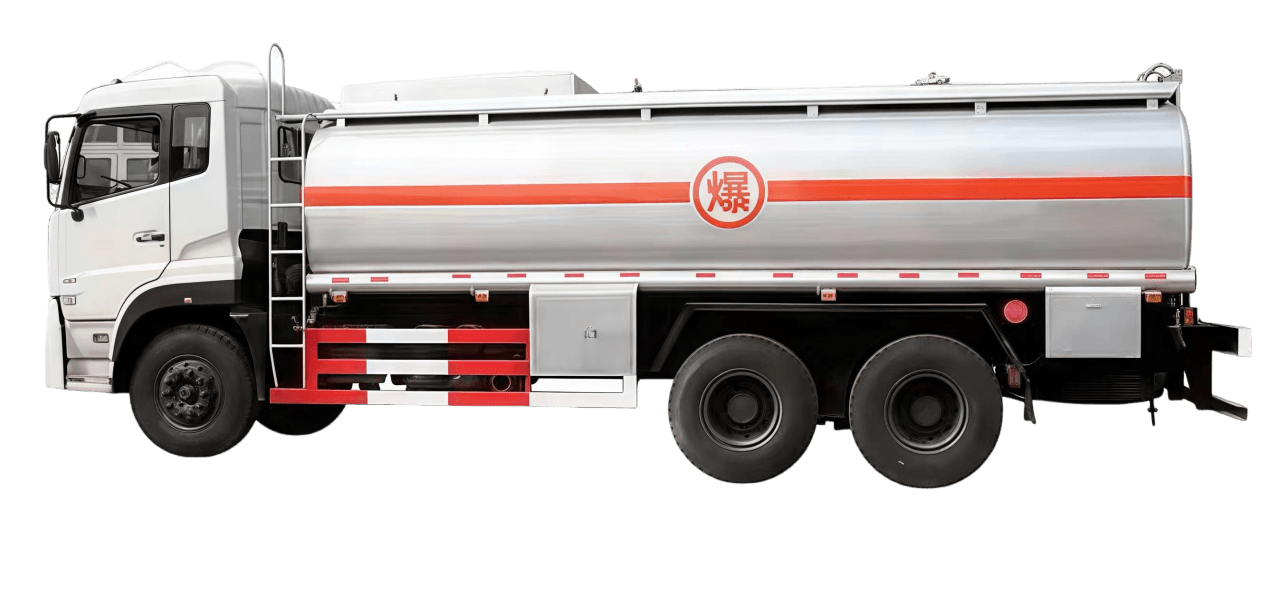

FUEL TANKER TRUCK 6x4
Key Features
- Tank capacity 15,000-22,000L
- Pumping system to load and unload the fuel
- In-truck 15m dispenser
- Overfuel protection
- Multiple tank compartments available for different type of fules
- Longer distance for multiple delivery missions
- Cost-effective option

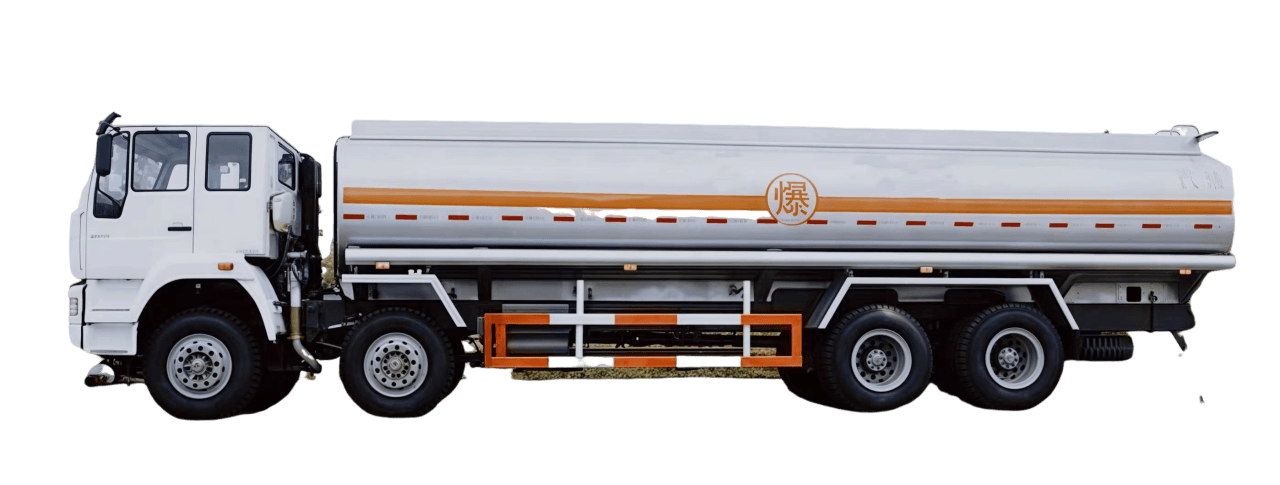

FUEL TANKER TRUCK 8x4
Key Features
- Tank capacity 18,000-35,000L
- Pumping system to load and unload the fuel
- In-truck dispenser is optional
- Overfuel protection
- Multiple tank compartments available for different type of fules
- Longer distance for multiple delivery missions
- Cost-effective option
Gas Cylinder Series

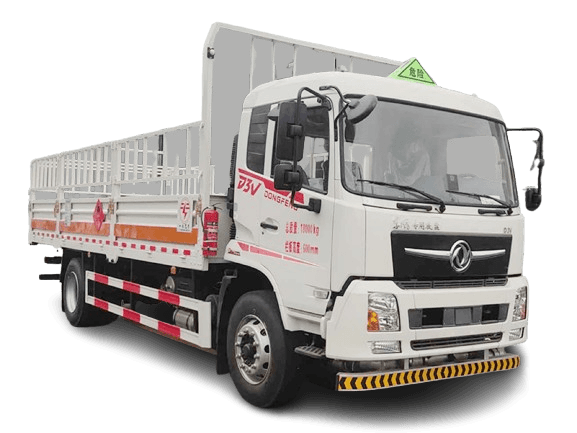

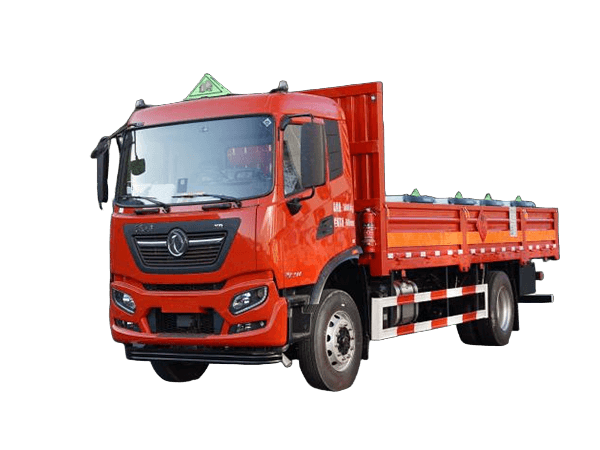

GAS CYLINDER TRUCK 4X2
Key Features
- Transport LPG, oxygen, nitrogen, hydrogen, CO2 stored in cylinders, bottles or drums
- Payload 10T
- Anti-static protection with electrostatic rubble belt
- Fire-exinguisher, fire shelter and warning signs
- Cost-effective for urban distribution
GAS CYLINDER TRUCK 4X2
Key Features
- Transport LPG, oxygen, nitrogen, hydrogen, CO2 stored in cylinders, bottles or drums
- Payload 12T
- Anti-static protection with electrostatic rubble belt
- Fire-exinguisher, fire shelter and warning signs
- Payload and economy balance

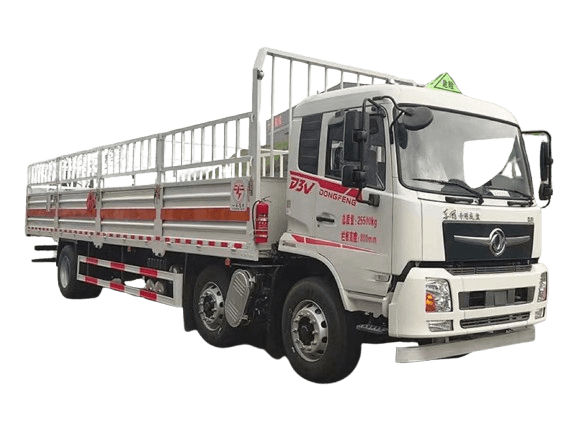

GAS CYLINDER TRUCK 6x4
Key Features
- Transport LPG, oxygen, nitrogen, hydrogen, CO2 stored in cylinders, bottles or drums
- Payload 16T
- Anti-static protection with electrostatic rubble belt
- Fire-exinguisher, fire shelter and warning signs
- Longer distance for inter-city transport

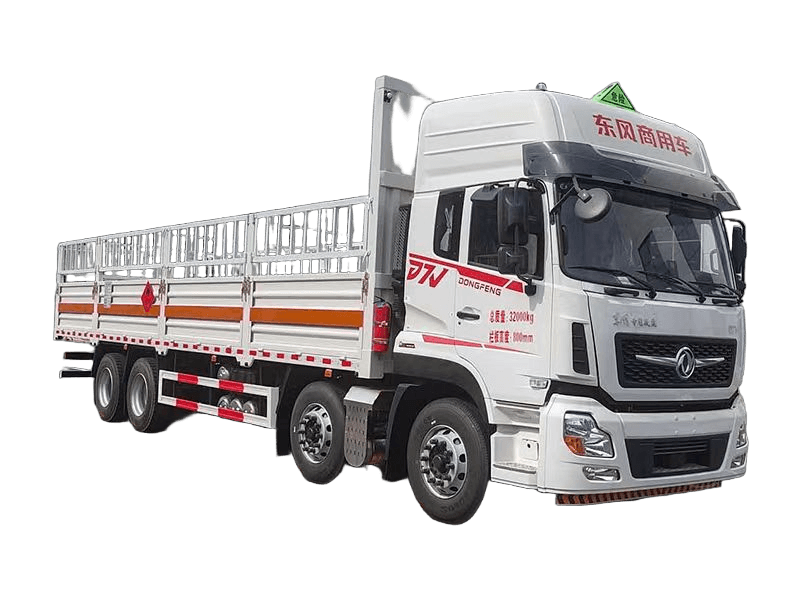

GAS CYLINDER TRUCK 8x4
Key Features
- Transport LPG, oxygen, nitrogen, hydrogen, CO2 stored in cylinders, bottles or drums
- Payload 20T
- Anti-static protection with electrostatic rubble belt
- Fire-exinguisher, fire shelter and warning signs
- Transport among reginonal distribution
Hazardous Chemicals Series

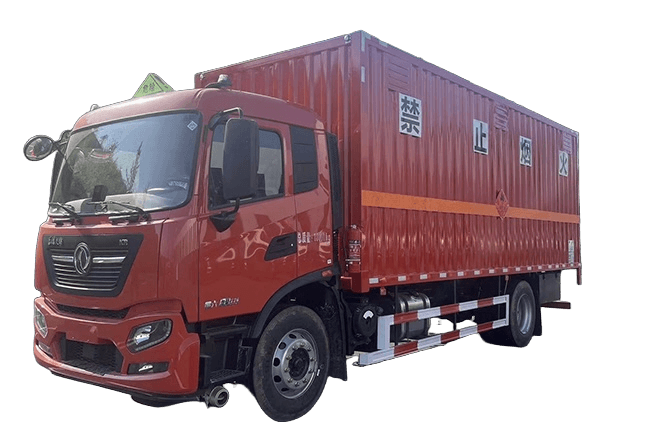

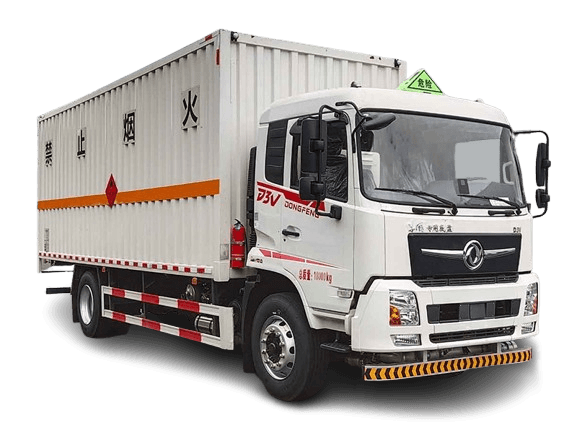

HAZMAT TRUCK 4X2
Key Features
- Transport hazardous chemicals and explosives
- Payload 10T
- Side doors available for loading
- Fire-exinguisher, fire shelter and warning signs
- Cost-effective
HAZMAT TRUCK 4X2
Key Features
- Transport hazardous chemicals and explosives
- Payload 12T
- Side doors available for loading
- Fire-exinguisher, fire shelter and warning signs
- Payload and economy balance
HAZMAT TRUCK 6x4
Key Features
- Transport hazardous chemicals and explosives
- Payload 16T
- Side doors available for loading
- Fire-exinguisher, fire shelter and warning signs
- Longer distance transport

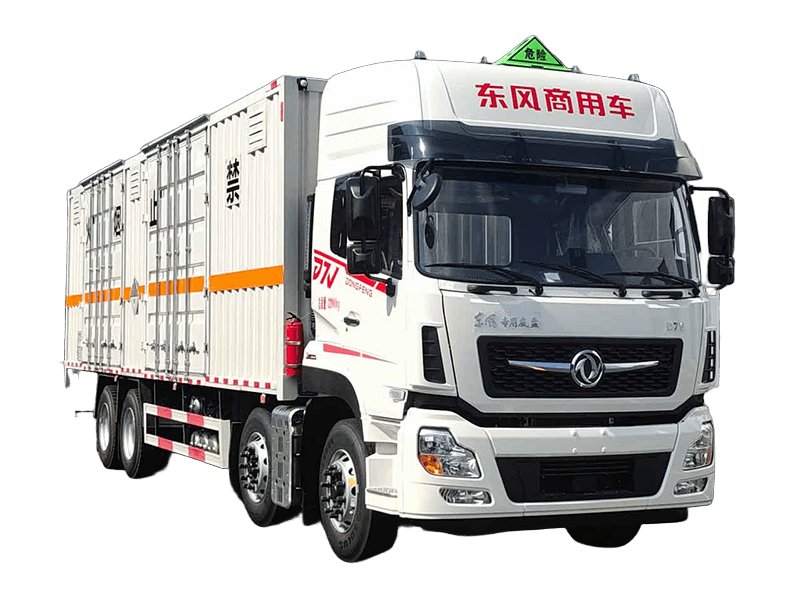

HAZMAT TRUCK 8x4
Key Features
- Transport hazardous chemicals and explosives
- Payload 20T
- Side doors available for loading
- Fire-exinguisher, fire shelter and warning signs
- Long distance and large volume
Oilfield Series
WELL DRILLING TRUCK
Key Features
- 8×8 configuration for oilfield terrains
- Driiling depth: 3,000-9,000m
- Mast clearance height: 40m
- Drawwork: Double drums with EATON WCB 324
- Power transmission system: hydraulic + mechanical
- Sludge tank capacity: 50-150cbm

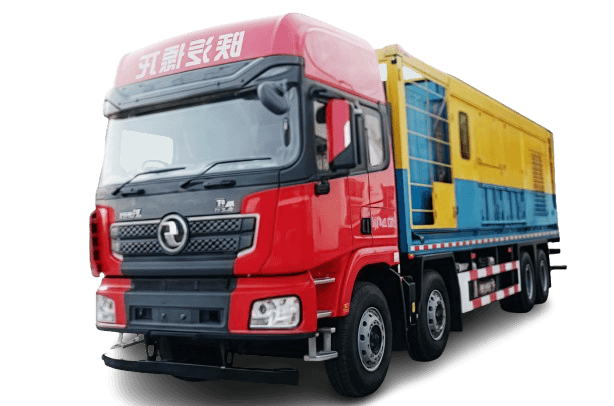

COMPRESSED NITROGEN TRUCK
Key Features
- 8X4 configurantion for oilfield terrains
- Equipped with nitrogen compressor
- Increase well productivity
- Application for well stimulation
- For pressure maintenance and improving reservoir integrity
- Compress nitrogen as drilling fluids for safety of drilling operation

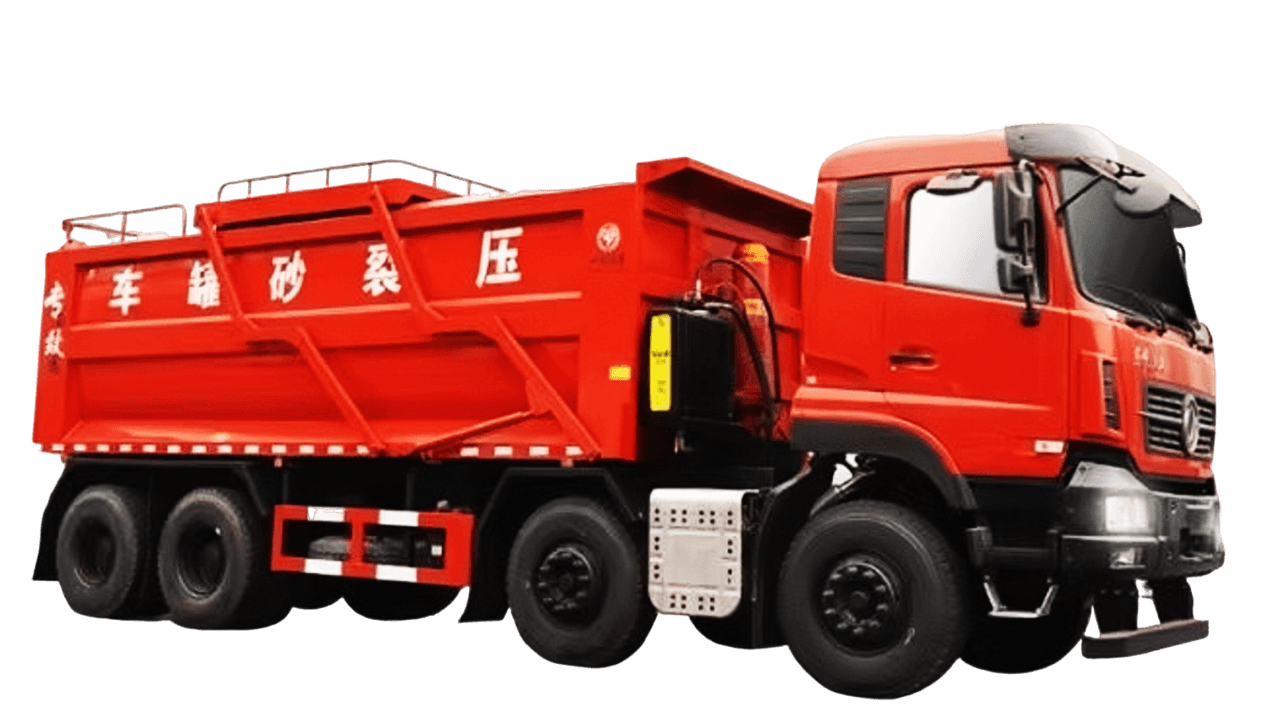

FRAC SAND TANKER TRUCK
Key Features
- 8X4 configurantion for oilfield terrains
- Transport fracturing proppant during oilfield fracturing operation
- Fully sealed and single-through compartment and three unloading ports at rear
- Material Q235
- GPS tracking system

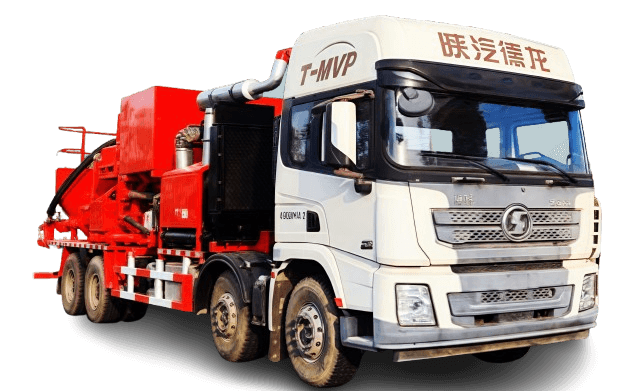

CEMENTING TRUCK
Key Features
- 8X4 configurantion for oilfield terrains
- Transport and mix cement slurry cementing the casing and completion of oil and gas wells
- Triplex plunger pump
- Working pressure: 70Mpa
- Water discharge: 3,300L/min
- Agitaing capacity: 2,300L/min
PUMPING UNIT INSPECTION TRUCK
Key Features
- Equipped with an air source interface
and a hydraulic oil interface bucket - Pneumatic gear oiling machine and neumatic grease injector
- Pneumatic wax remover adding
machine and solvent tank - Hydraulic torque wrench to mount,
remove and re-tighten the large nuts

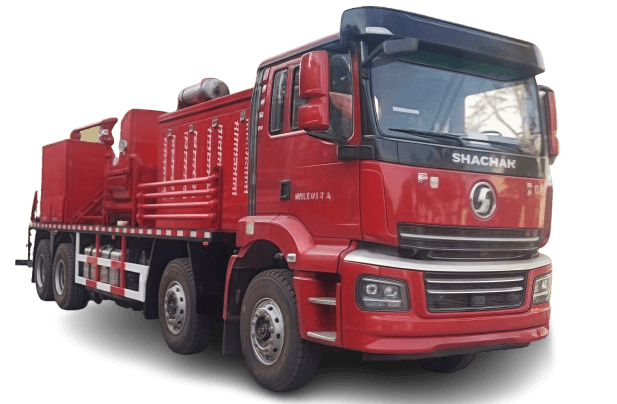

WELL FLUSH AND WAX REMOVAL
Key Features
- 8X4 configurantion for oilfield terrains
- Medium: crude oil, brine, water etc.
- Hot wash pressure: 35Mpa
- Pump discharge: 5,000L/hour
- Triplex plunger pump and horizontal layout boiler
- In-truck diesel generator
- Automatic control two stage heater

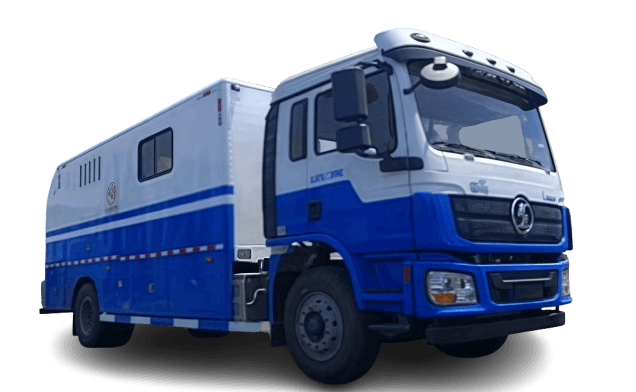

TRUCK MOUNTED WELL LOGGING UNIT
Key Features
- For wireline logging works in the oilfield
- Double drums: co-axial double drum
- Hydraulic transmission winch
- Drum capacity: 6000m (φ11.8)/ 8000m (φ8.0)
- Lifting speed: 30-8000m/h
- Lifting capabilities: 50kN (Φ11.8mm wireline), 25kN (Φ5.6mm wireline)

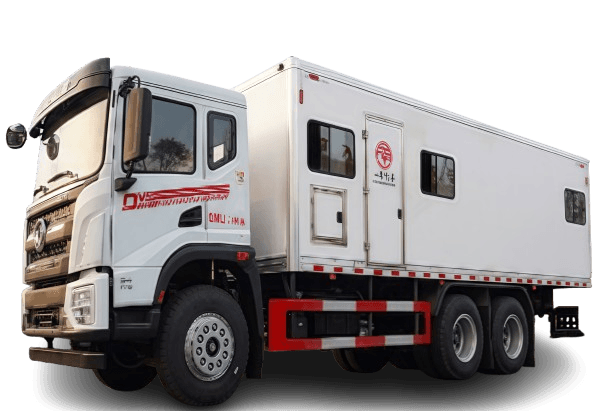

TRUCK MOUNTED STEAM BOILER
Key Features
- For oil well wax removal and surroundings cleaning
- Hot wash pressure: 8Mpa
- Pump discharge: 1,800L/hour
- Working temp ≤ 280℃
- Boiler output ≤ 700kW
- Water tank capacity: 5cbm
- Boiler fuel type: dieseal, LPG
Trailer Series

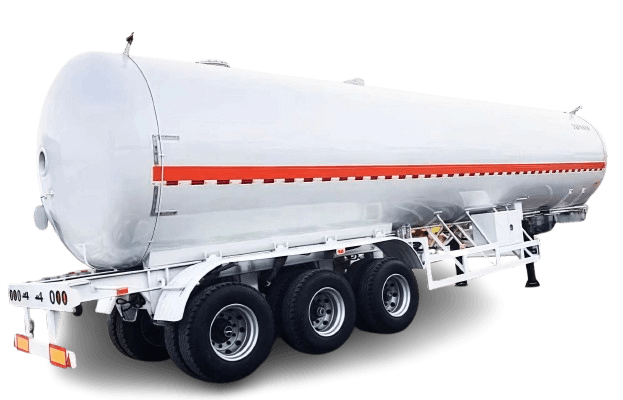

FUEL TANKER TRAILER
Key Features
- Tank capacity: 20-70cbm
- Q345R from 11-14mm
- Number of axle: 2/3/4
- Number of compartment: 1+
- Medium: Gasoline, diesel, jet fuel, kerosene, biofuels, ethonal, lubricants and chemicals
